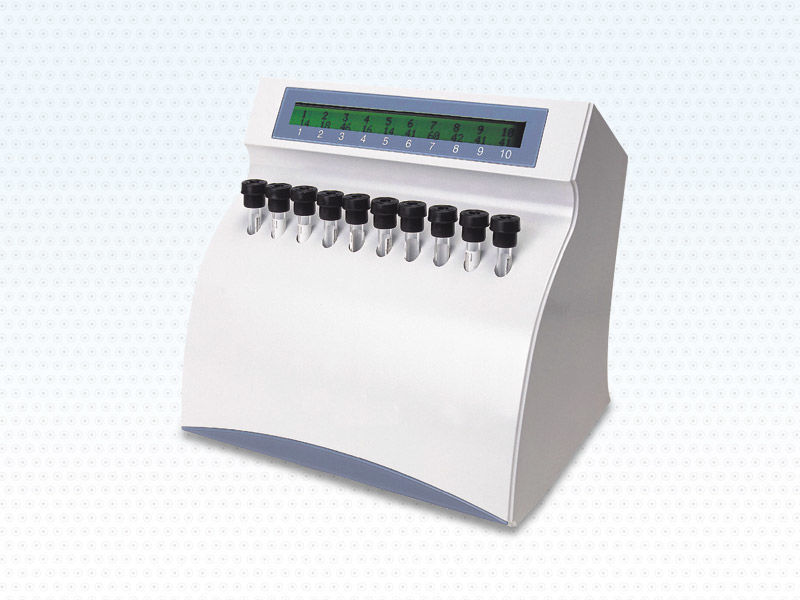

Random Access Automated Erythrocyte Sedimentation Rate Batch Analyzer LabOne ESR 2010 V6.0 (Batch Analyzer) offers 1 hour & 2 hour ESR results in 30 minutes and 60 minutes simultaneously, auto-corrected to 18 °C.

Download Catalogue

Be the first to review this product

$0.00

Qty: decrease increase

Features & Benefits
Specifications
Reviews
Contact Us

ESR 2010 V4.0, is a Small; Compact; Desktop Random Access Analyzer
1 hour ESR results in 30 minutes, auto-corrected to 18 °C (as per Manley)
Holds ten ESR tubes and offers 20 results per hour
Totally blood hazard free-closed system, useful for creating Safe and Healthy Environment for the user
No Timing; Temperature Error and Human Error
Good correlation to 1 hour Modified Westergren method
Graphical printout of results, with optional Stylus Printer
ESR results from 1-140 mm/hr is displayed on the LCD. Results more than 140 mm/hr are printed on the Stylus Printer, if connected to the analyzer
Maintenance free

Application area: Blood Sedimentation Rate Analysis
ESR tubes: 9*120mm, 1.28ml Vacuum/Non-vacuum
ESR Loading Capacity: Maximum 10 samples
Loading Pattern: Random Access (V4.0); In a batch of 10 (V6.0)
Throughput: 20 samples per hour
Analysis time: 30 minutes (V4.0) and 30 & 60 minutes (V6.0)
Results: In Westergren mm/hour (by interpolation)
Test Tube: 1.1ml ~ 1.28 ml blood (Non-vacuum ESR tube)
Temperature correction: Results autocorrected to 18 °C (Manley Table)
Measurement principle: Infrared (IR) detection, transmission reading at start and during 30 / 30 & 60 minutes of sedimentation
Reading resolution: +/- 0.2 mm; Result resolution: +/- 1 mm
Measurement range: 1 – 140 mm/hr*
Reproducibility: C.V < 5%
Display: LCD with backlight
Interface: LPT for printer
Standard Operating Temperature: 15 °C to 30 °C
Dimensions (w x h x d): 22 cm x 21.6 cm x 17.5 cm
Weight: 2.5 kg
External power supply: 110-220V AC
